Cow Manure Dryer

Product Introduction

The cow manure dryer can simultaneously dry manure, with a humidity range of 70% -80%, and a safe storage humidity of 13%. The entire process is carried out in a closed system to reduce environmental pollution during the drying process. The equipment mainly consists of a heat source, a feeder, a rotating drum, a discharge machine, a material crushing device, an exhaust fan, a discharge device, and a distribution cabinet; Add the dehydrated wet material to the dryer and evenly distribute it in the drum. When the fabric replicator rotates, the material is evenly distributed in the dryer and comes into complete contact with the hot air, thereby accelerating the heat and mass exchange during drying. During the drying process, the material is discharged onto the star shaped exhaust valve in another part of the dryer under the influence of the inclined plate and high temperature.

Working characteristics of cow manure dryer:

1. Production process: This machine will use high-temperature drying, disinfection and sterilization, decomposition and other processes to dry cow manure with a moisture content of 80%, and produce pure organic fertilizer from cow manure with a moisture content of less than 13%.

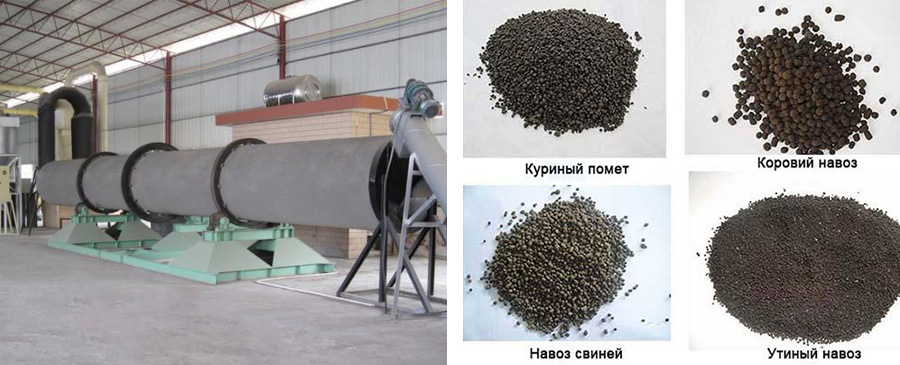

2. Dried products: This organic fertilizer contains various nutrients required by crops. The research department confirmed that the fertilizer contains 2.6% nitrogen, 3.5% phosphorus, 2.5% potassium, 16-25% protein, and 45% organic matter. It is the best fertilizer for growing environmentally friendly and green feed, and can also be used to feed fish, cattle, pigs, etc. D. Other matters
3. The drum dryer has a high degree of mechanization, high productivity, and continuous operation.
4. Excellent and simple structure, stable material performance, high cylinder resistance, and easy operation.
5. Low failure rate, low maintenance cost, and low power consumption.
6. The product has a wide range of applications and good drying uniformity.
7. Sterilization and deodorization can be achieved during the drying process.

Specification

Model	Capacity (t/h)	Feed moisture （%）	Discharge moisture （%）	Main motor （kw）	Speed reducer （JZQ）
Φ600*8m	0.5-1.2	70±5	15±5	2.2	200
Φ600*10m	0.5-1.5	70±5	15±5	3	250
Φ800*8m	0.8-1.5	70±5	15±5	5.5	250
Φ800*10m	0.8-1.8	70±5	15±5	5.5	250
Φ1000*10m	1.0-3.5	70±5	15±5	7.5	250
Φ1000*12m	1.0-3.8	70±5	15±5	7.5	250
Φ1200*12m	1.2-3.5	70±5	15±5	11	350
Φ1200*15m	1.2-4.0	70±5	15±5	11	350
Φ1500*15m	2.0-5.5	70±5	15±5	22	500
Φ1800*16m	3.5-6.5	70±5	15±5	22	500
Φ1800*20m	4.0-6.5	70±5	15±5	30	650
Φ2000*20m	5.0-7.0	70±5	15±5	37	650
Φ2000*22m	5.0-.7.0	70±5	15±5	37	650
Φ2400*22m	5.5-8.0	70±5	15±5	45	650
Φ2400*26m	7.0-16	70±5	15±5	55	750
Φ3000*20m	15-25	70±5	15±5	55	850
Φ3000*25m	15-30	70±5	15±5	75	850
Φ3300*25m	25	70±5	15±5	75	1000
Φ3500*25m	30	70±5	15±5	90	1000
